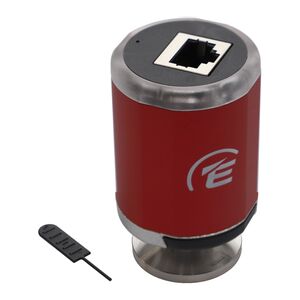

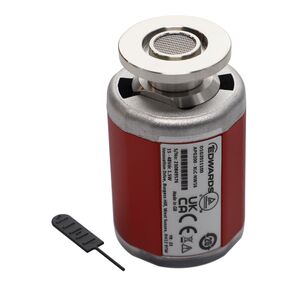

APG200 - XLC - NW16, Pirani Gauge, D1G2011100

Gauge Indirect Pressure Measurement

Indirect braod range vacuum gauges are the best choice when the pressure needs to be measured over a wide range and when good accuracy is needed across the whole range. Reliable vacuum gauges are essential to ensure your system’s accuracy and control. Our vacuum gauging solutions include the WRG Series Cold Cathode Combination Gauge, AIM Series Cold Cathode Gauge, and APG Series Pirani Gauge.

APG200 Series

Edwards new APG200 series high performance compact Pirani Gauge is the perfect vacuum measurement solution across a spectrum of applications due to its compact size, LED light ring, integrated set points and flexibility of connections/outputs.

Edwards production facility in the UK has been making and designing vacuum gauging for decades. With this experience we have been able to develop a gauge that has a 25% reduced package size, with no loss in performance. And by owning not only the measuring technology, but also the electronic development and manufacture we have been able to maximise the features we can offer.

With a range of upgrades and feature enhancements, the APG200 is suitable for all vacuum markets, from Analytical instruments who can take advantage of the reduced size and flexible outputs, to Semiconductor for whom the new interfaces and light rings enable better maintenance of systems, to Research and development for whom the local pressure indication helps to monitor experiments away from the main interfaces.

APG200 - XLC - NW16

APG-XLC (linear analog 0-10V output, low pressure, corrosion resistant)

Features and Benefits

• Reduced footprint - 25% shorter than previous gen
• On board set points
• Light ring with pressure indication
• Updated design - quality feel and part of our family design
• Matched outputs – no change to your software
• Wide range power input
• Wide pressure measuring range
• Reliability you can trust – improved on APG100 platform
