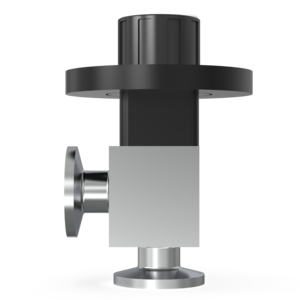

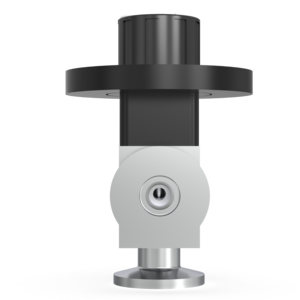

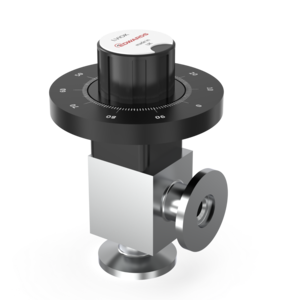

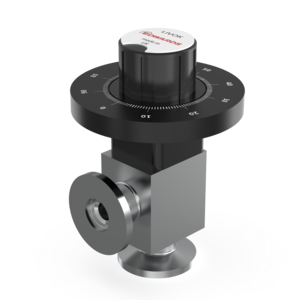

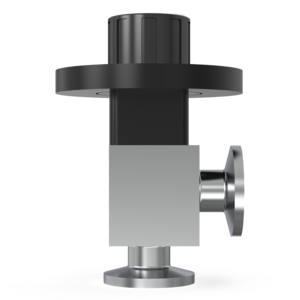

Leak Valve - LV10K - NW10 Flanges, C37102000
Part Number: C37102000
GBP 379.00
Leak Valve
The LV10K needle valve provides fine control of gas bleed into a vacuum chamber or a regulated
leak to control pressure in a vacuum system and is suitable for gas admission down to 10- 5 mbar /
8 x 10-6 Torr. Suitable for pipeline or panel mounting.
Features and Benefits
- Simple manual leak valve.
General Product Information
| Recommended Pressure Range Max | 2.000 × 10⁵ |
| Connection Inlet Flange | DN 10 ISO-KF (NW10) |
| Weight | 0.138 |
| Valve Actuation Method | Manual |
| Connection vacuum outlet flange | DN 10 ISO-KF (NW10) |
| Leak Rate | 1.000 × 10⁻⁸ |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 2.000 × 10⁵ |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻⁸ |
| Pressure Differential Max | 100000.00 |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Needle | Martensitic Stainless Steel EN56AM |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Clamping Ring - St St NW10/16 (red wing nut), C10512401 | C10512401 | GBP 8.10 | |
| Centring Ring - St St FKM O-Ring - NW10, C10511395 | C10511395 | GBP 10.80 | |
| Centring Ring - Al Nitrile O-Ring - NW10, C10511398 | C10511398 | GBP 6.80 | |
| Centring Ring - Al FKM O-Ring NW10, C10511397 | C10511397 | GBP 10.80 |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Spares Kit Valve Seat, C37102812 | C37102812 | GBP 294.00 |
