Specifications
| Connection electrical comms interface connector | Passive gauges specific cables |
| Connection Inlet Flange | DN 25 ISO-KF (NW25) |
| Pressure Measurement Max | 1.00 |
| Pressure Measurement Min | 1.000 × 10⁻⁷ |

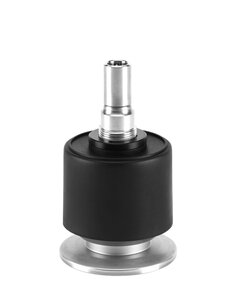

CPG35K - NW25, D03000130
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange |
|---|---|---|
| D03000100 | DN 40 ISO-KF (NW40) | |
| D03000110 | DN 40 CF (2.75") | |
| D03000130 | DN 25 ISO-KF (NW25) | |
| D03000140 | DN 40 CF (2.75") |
Gauge Indirect Pressure Measurement
Indirect braod range vacuum gauges are the best choice when the pressure needs to be measured over a wide range and when good accuracy is needed across the whole range. Reliable vacuum gauges are essential to ensure your system’s accuracy and control. Our vacuum gauging solutions include the WRG Series Cold Cathode Combination Gauge, AIM Series Cold Cathode Gauge, and APG Series Pirani Gauge.
CPG Penning Gauge
The Penning Gauge Sensors are available in 4 models. All 4 have a measurement range of 1 x10⁻⁹ to 10⁻² mbar (0.75 x 10 ⁻⁹ to 10⁻² Torr) and are insensitive to air rushes and vibration. These passive sensors use cold cathode ionization technology according to Penning. The cathode plate is exchangeable, and demonstrates improved ignition through the use of titanium cathodes. The CPG35KB is bakeable to 200 °C.
General Product Information
| Connection Inlet Flange | DN 25 ISO-KF (NW25) |
| Weight | 0.480 |
| Dimension Length | 0.050 |
| Power Supply Frequency | DC Voltage |
| Dimension Height | 0.094 |
| Dimension Width | 0.050 |
| Connector Electrical Power | Passive gauges specific cables |
| Recommended Controller | PGC201 - Passive Gauge Controller Pirani |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
| Temperature Ambient Operation Min | 248.15 |
| Temperature Ambient Storage Min | 273.15 |
| Temperature Ambient Storage Max | 353.15 |
Classification
| Classification Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar |
| Classification Principle of Measurement | Passive cold-cathode vacuum gauge (Penning) |
Performance Data
| Measurement Uncertainty | 10-4 to 10-8 mbar ±30% |
| Pressure Measurement Max | 1.00 |
| Pressure Measurement Min | 1.000 × 10⁻⁷ |
Material of Construction
| Material Exposed to Vacuum | Cr; Mo; Nb; Ti; Ni; NiFe; NiCr; glass and ceramics |
Operation Conditions - Limitations
| Temperature Baking Max | 353.15 |
Connectivity - Communication Interface
| Connection electrical comms interface connector | Passive gauges specific cables |
