Specifications
| Connection electrical comms interface connector | Passive gauges specific cables |
| Connection Inlet Flange | DN 40 CF (2.75") |
| Pressure Measurement Max | 1000.00 |
| Pressure Measurement Min | 2.000 × 10⁻⁶ |
IG40 BA - DN 40 CF, D03000300
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Pressure Measurement Max |
|---|---|---|
| D03000300 | 1000.00 | |
| D03000310 | 10.00 |
Gauge Indirect Pressure Measurement
Indirect braod range vacuum gauges are the best choice when the pressure needs to be measured over a wide range and when good accuracy is needed across the whole range. Reliable vacuum gauges are essential to ensure your system’s accuracy and control. Our vacuum gauging solutions include the WRG Series Cold Cathode Combination Gauge, AIM Series Cold Cathode Gauge, and APG Series Pirani Gauge.

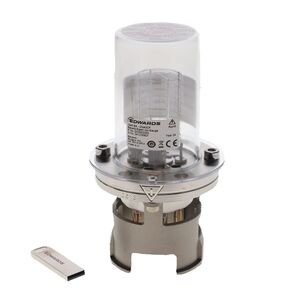

IG40 Hot Cathode Gauge

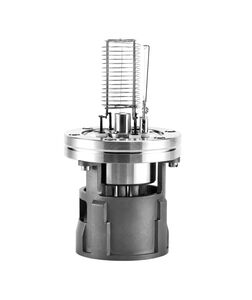

Using hot cathode ionization technology, both the Bayard-Alpert and Extractor gauges have highly accurate individually calibrated sensing systems and exchangeable cathodes. The Bayard-Alpert sensing system has a measurement range from 10-2 to 2 x 10-11 mbar (1.5 x 10-11 Torr) with it’s protection shield welded in place. The Extractor sensing system has a measurement range from 10-4 to 2 x 10-12 mbar (1.5 x 10-12 Torr), alongside a significant reduction of X-ray and ion desorption effects.
General Product Information
| Connection Inlet Flange | DN 40 CF (2.75") |
| Dimension Length | 0.069 |
| Power Supply Frequency | DC Voltage |
| Dimension Height | 0.158 |
| Dimension Width | 0.069 |
| Connector Electrical Power | Passive gauges specific cables |
| Recommended Controller | PGC201 - Passive Gauge Controller Pirani |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
| Temperature Ambient Operation Min | 293.15 |
| Temperature Ambient Storage Min | 293.15 |
| Temperature Ambient Storage Max | 353.15 |
Classification
| Classification Product Pressure Range |
High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar
Ultra High Vacuum: 1·10⁻⁷ - 1·10⁻¹¹ mbar |
| Classification Principle of Measurement | Passive hot cathode ionisation (Bayard Alpert) |
Performance Data
| Measurement Uncertainty | ±5x10-13 mbar ±2% |
| Pressure Measurement Max | 1000.00 |
| Pressure Measurement Min | 2.000 × 10⁻⁶ |
Operation Conditions - Limitations
| Temperature Baking Max | 673.15 |
Connectivity - Communication Interface
| Connection electrical comms interface connector | Passive gauges specific cables |
- D1G1091100-A00_A_APG200_-_XM-DN16CF_CUSTOMR_REF.stp - English - Drawings
- D0300030001EN - Instructions.pdf - English - Instructions
- D02994880 - Instructions.pdf - English - Instructions
- 3601-0307-03-Passive-Gauges.pdf - English - Technical Data
- 3601-0307-01-Passive-Gauges.pdf - English - Technical Data
- D0300030001FR - Instructions.pdf - French - Instructions
- D0300030001DE - Instructions.pdf - German - Instructions
- D0300030001IT - Instructions.pdf - Italian - Instructions
- D0300030001JP - Instructions.pdf - Japanese - Instructions
- D0300030001KR - Instructions.pdf - Korean - Instructions
- D0300030001ZH - Instructions.pdf - Simplified Chinese - Instructions
- D0300030001ES - Instructions.pdf - Spanish (European) - Instructions
