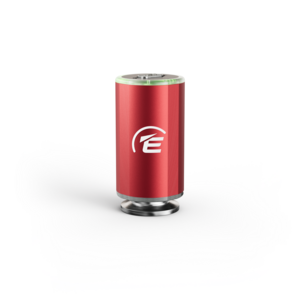

nWRG200 - XS - RS485 - NW40 - 9-Pin DSUB - CAL, Wide Range Gauge, D3G013020C

Gauge Indirect Pressure Measurement

Indirect braod range vacuum gauges are the best choice when the pressure needs to be measured over a wide range and when good accuracy is needed across the whole range. Reliable vacuum gauges are essential to ensure your system’s accuracy and control. Our vacuum gauging solutions include the WRG Series Cold Cathode Combination Gauge, AIM Series Cold Cathode Gauge, and APG Series Pirani Gauge.

WRG Series Cold Cathode Combination Gauge

The Active Wide Range Gauge WRG200 offers the capability of single port pressure measurement in the range atmosphere to 10-9 mbar with a linear output.

The nWRG200 version is the digital version of the WRG200 offering either RS232 or RS485 as a protocol.

The WRG200 is a compact and efficient solution that significantly reduces the required space and hardware for connectivity. Its compact design makes it ideal for various applications. This gauge has undergone numerous technical improvements such as its innovative striker design, a 360 degree LED light ring, easy push-button calibration, integrated set-point controls, and comprehensive diagnostics. The WRG200 offers cost-effectiveness as a vacuum management solution, either when used with an Edwards controller or directly integrated into the system controls. This gauge is perfect for monitoring pressure in systems that are rapidly pumped down from atmospheric pressure to high vacuum levels.

Features and Benefits

• 360° LED light ring visual pressure indicator
• Reduced footprint
• Multipoint star striker
• Analogue/digital
• Wide range power supply
• Drop in compatible
• New magnets
• Set-point relay
