XDD1 - Diaphragm Pump, 1Ph 100-120/200-230V 50/60Hz, MK2

Diaphragm Pumps

Discover the power of our Diaphragm Pumps Collection.

XDD1 Diaphragm Pumps offer compact and efficient pumping designed for clean, high vacuum applications. Ideal for supporting small turbomolecular pumps, the XDD1 is not only versatile but also serves as a free-standing benchtop unit.

D-LAB Membrane Pumps: Support your chemical or pharmaceutical laboratory operations with these top-quality machines. Engineered with chemically resistant Teflon® heads, diaphragms, and Kalrez® valves, these pumps offer a myriad of choices.

Optimize your laboratory experience with the precision and reliability of our Diaphragm Pumps collection. Shop now for high-quality pumps tailored for clean, high vacuum applications and chemical laboratory tasks.

XDD1 Diaphragm Pumps

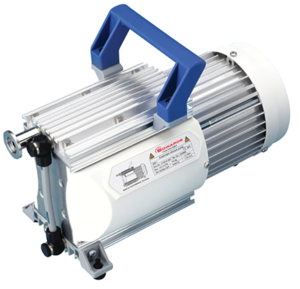

XDD1 diaphragm pumps are compact and efficient pumps, used for backing small compound turbomolecular pumps in clean, high vacuum applications, and also designed to be free standing bench top units. A typical ultimate pressure of better than 5 x 10-8 mbar can be achieved when using an XDD1 to back a small turbomolecular pump. The XDD1 pumps are intended for use on non-aggressive, safe area applications.

The 24 V version is designed to provide a complete pumping package and can be used with the Edwards Turbo and Instrument Controller. The DC voltage motor runs on 24V via a 15 pin DIN connector. By selecting the appropriate mode the pump speed can be controlled by the user to provide variable pumping speed or max pumping speed. The pump is a compact and efficient. The Mk3 24V version can now be user set to run at a maximum speed of 1.8 m3h-1 running at 2400 rpm.

Under normal conditions the XDD1 is virtually maintenance free, the lifetime of the diaphragms and valves is typically > 10,000 operating hours, depending on the application.

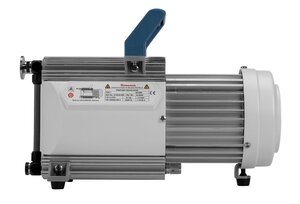

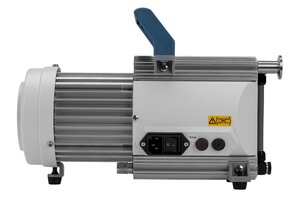

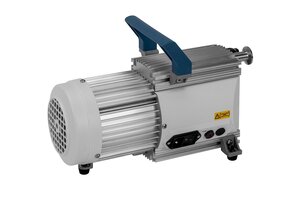

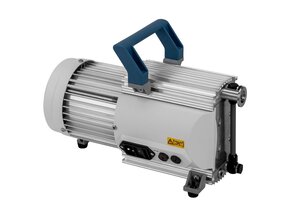

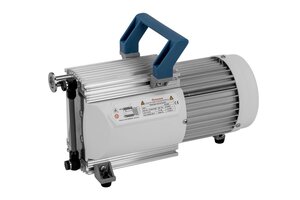

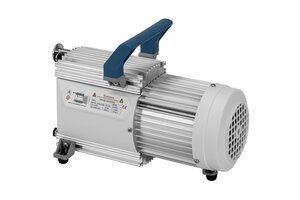

XDD1 - Diaphragm Pump, 1Ph 100-120/200-230V 50/60Hz, MK2

The XDD1 Mk2 is the second generation of the XDD1. It is the mains driven version offering a wide voltage supply range for worldwide operation.

Features and Benefits

• Dry pumping, lubricant free technology - eliminating the need for costly oil changes and disposal
• Lightweight and compact - with a small footprint allowing flexibility of use.
• Ideal backing pump - for small turbomolecular pumps.
• Complies - with EN61010, EN1012, CSA/UL standards.
• Worldwide - 115/230 V or 24 V options.
• IEC 60320 C13 connector - on a.c. pumps.
