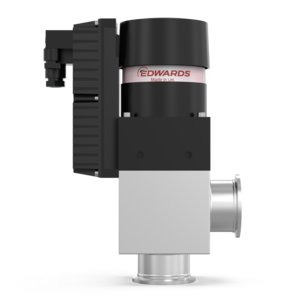

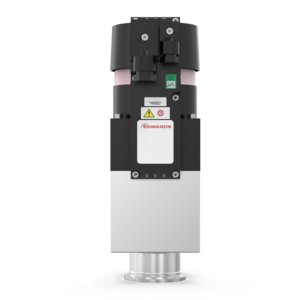

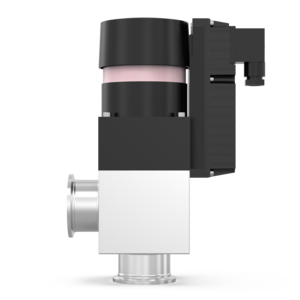

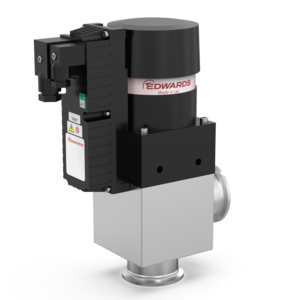

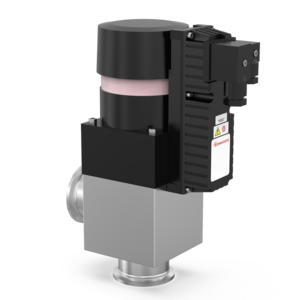

Angle Valve - PV40EKA - Solenoid Valve 110-127V 1-ph 50/60Hz Al, C41403000
Part Number: C41403000
GBP 1,557.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange | Material Body |
|---|---|---|---|
| C41103000 | DN 10 ISO-KF (NW10) | Aluminum | |
| C41203000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41204000 | DN 16 ISO-KF (NW16) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 | |
| C41303000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41304000 | DN 25 ISO-KF (NW25) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 | |
| C41403000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41404000 | DN 40 ISO-KF (NW40) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 |
PVEK ISO-KF - Rt Angle Isolation Valve
The Edwards PVEK series valves are compact, light weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the PVEK solenoid operated right angle valves are available with either aluminium or stainless steel bodies, with an overall MTTF of up to 500,000 cycles.
Features and Benefits
- Transient high power for opening – electronically switched
- Low energy consumption in the ‘hold open’ position
- Enclosure rating to IP55
- Grease free vacuum
- MTTF up to 500000 cycles
General Product Information
| Recommended Pressure Range Min | 1.000 × 10⁻⁷ |
| Recommended Pressure Range Max | 2.000 × 10⁵ |
| Connection Inlet Flange | DN 40 ISO-KF (NW40) |
| Weight | 4.50 |
| Valve Actuation Method | Solenoid / Electromagnetic |
| Connection vacuum outlet flange | DN 40 ISO-KF (NW40) |
| Leak Rate | 1.000 × 10⁻¹⁰ |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 110-127V 50/60Hz |
| IP Rating | IP67 |
| Power Supply Frequency |
50 Hz
60 Hz |
| ProductCertification |
CE
RoHS |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 2.000 × 10⁵ |
| Altitude Max | 2000.00 |
| Valve Pressure Max | 2.000 × 10⁵ |
| Reliability MTTF (mean time to failure) | 1.300 × 10⁵ |
Environmental Conditions
| Temperature Ambient Operation Max | 323.15 |
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 243.15 |
| Temperature Ambient Storage Max | 343.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻¹⁰ |
| Pressure Differential Max | 100000.00 |
Classification
| Classification Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar Rough Vacuum: 1000 mbar - 1 mbar |
- C41102856 - Instructions.pdf - Brazilian Portuguese - Instructions
- C41102851 - Instructions.pdf - Czech - Instructions
- C41102886 - Instructions.pdf - Dutch - Instructions
- C41101840 - Instructions.pdf - English - Instructions
- C41102885 - Instructions.pdf - English, French, German - Instructions
- C41102883 - Instructions.pdf - French - Instructions
- C41102882 - Instructions.pdf - German - Instructions
- C41102884 - Instructions.pdf - Italian - Instructions
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Clamping Ring - St St NW32/40 (red wing nut), C10516401 | C10516401 | GBP 12.10 | |
| Centring Ring - St St Nitrile O-Ring - St St NW40, C10516396 | C10516396 | GBP 13.40 | |
| Centring Ring - Polymer Nitrile O-Ring - NW40, C10516393 | C10516393 | GBP 9.50 | |
| Clamp - Hinged Clamp - AL NW32/40, C10516402 | C10516402 | GBP 45.10 |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Spares Kit Pad & Body O Ring PV240EK, C41401800 | C41401800 | GBP 87.20 |
