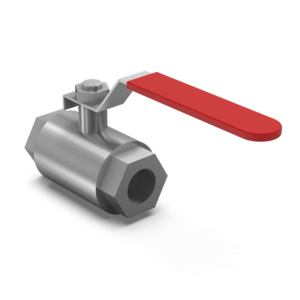

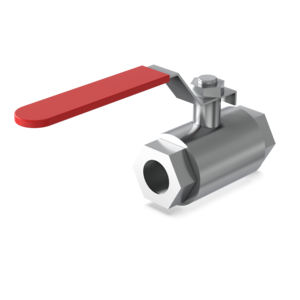

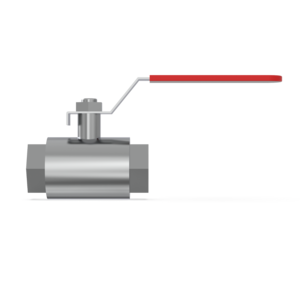

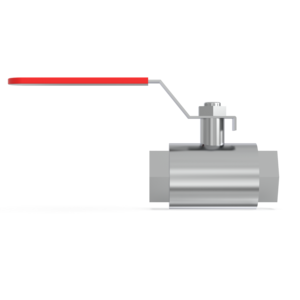

Inline Valve - IBV25MS - 1" BSPP (G) Ball Valve St St, C36000210
Part Number: C36000210
GBP 198.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange |
|---|---|---|
| C36000100 | DN 16 ISO-KF (NW16) | |
| C36000110 | 1/2" BSPP (or G 1/2") Female | |
| C36000200 | DN 25 ISO-KF (NW25) | |
| C36000210 | 1" BSPP (or G 1") Female | |
| C36000300 | DN 40 ISO-KF (NW40) | |
| C36000310 | 1 1/2" BSPP (or G 1 1/2") Female | |
| C36000400 | DN 50 ISO-KF (NW50) | |
| C36000410 | 2" BSPP (or G 2") Female |
IBV ISO-KF - Ball Valve
Ball valves are popular in applications where fast action and full bore pumping are needed.
The Edwards IBV series valves combine these practical everyday features plus ease of use and economy in a high specification design. Manufactured in 316L stainless steel with PTFE seats they deliver robust performance in a wide variety of vacuum duties.
Features and Benefits
- Low capital cost
- Convenient NW16, 25, 40, 50 sizes
- Optional BSP threaded versions
- Easy to use manual operation
- High conductance full bore pumping
General Product Information
| Recommended Pressure Range Min | 7.000 × 10⁵ |
| Connection Inlet Flange | 1" BSPP (or G 1") Female |
| Weight | 1.50 |
| Valve Actuation Method | Manual |
| Connection vacuum outlet flange | 1" BSPP (or G 1") Female |
| Leak Rate | 1.000 × 10⁻⁷ |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
| Temperature Ambient Operation Min | 278.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻⁷ |
Operation Conditions - Limitations
| Temperature Baking Max | 343.15 |
| Valve Pressure Max | 7.000 × 10⁵ |
| Reliability MTTF (mean time to failure) | 30000.00 |
Material of Construction
| Material Body | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 |
| Material Abbreviation | St St |
