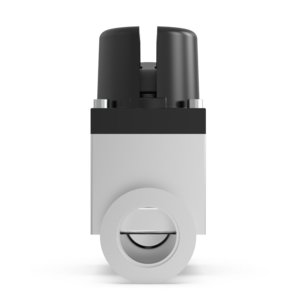

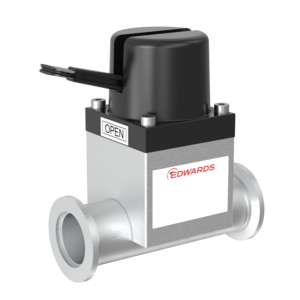

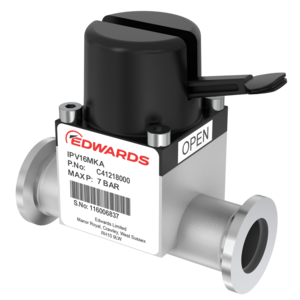

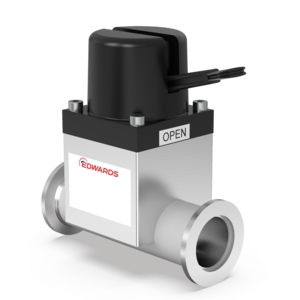

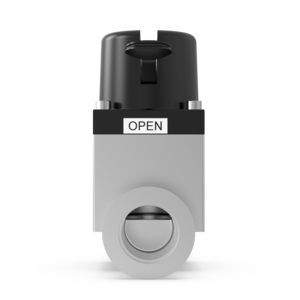

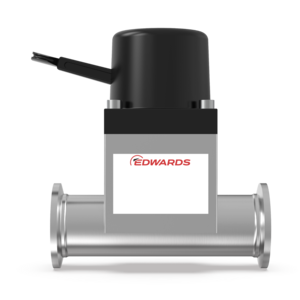

Inline Valve - IPV16MKA - Bellows Sealed Manual Al NW16, C41218000
Part Number: C41218000
GBP 383.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange | Material Body |
|---|---|---|---|
| C41218000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41219000 | DN 16 ISO-KF (NW16) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 | |
| C41321000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41322000 | DN 25 ISO-KF (NW25) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C41420000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41421000 | DN 40 ISO-KF (NW40) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 |
IPVMK ISO-KF - In-line Isolation Valve
The IPVMK is a quick acting, bellows sealed, right-angled lever operated valve and is available with either an Aluminium or stainless steel body. The lever, connected to a self lubricating plastic cam‑piston, actuates the valve stem and valve plate through PTFE bearings. The valve plate O-ring groove is vented to prevent gas bursts. The valves are designed to operate down to 10- 9 mbar / 8 x 10-10 Torr and up to a pressure of 2100 mbar / 1575 Torr (30 psi).
General Product Information
| Recommended Pressure Range Min | 1.000 × 10⁻⁷ |
| Recommended Pressure Range Max | 2.100 × 10⁵ |
| Connection Inlet Flange | DN 16 ISO-KF (NW16) |
| Weight | 0.180 |
| Valve Actuation Method | Manual |
| Connection vacuum outlet flange | DN 16 ISO-KF (NW16) |
| Leak Rate | 1.000 × 10⁻¹³ |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Environmental Conditions
| Temperature Ambient Operation Max | 318.15 |
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 278.15 |
| Temperature Ambient Storage Max | 318.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻¹⁰ |
Operation Conditions - Limitations
| Temperature Baking Max | 373.15 |
| Reliability MTTF (mean time to failure) | 1.000 × 10⁵ |
