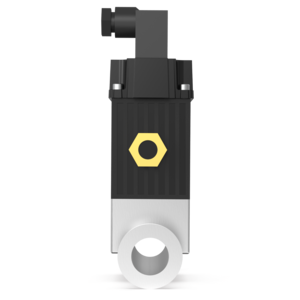

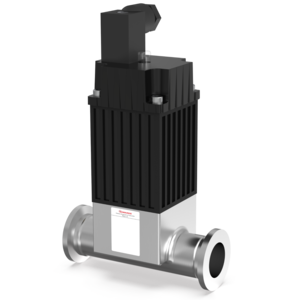

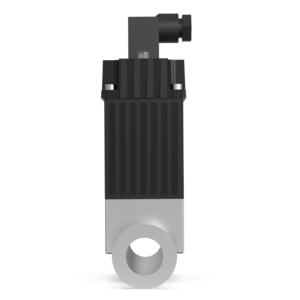

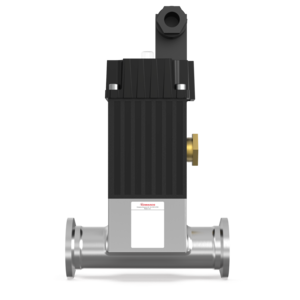

Inline Valve - IPV16PKA - Bellows sealed Al NW16, C41601000
Part Number: C41601000
GBP 553.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange | Material Body |
|---|---|---|---|
| C41419000 | - | - | |
| C41419200 | - | - | |
| C41601000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41602000 | DN 16 ISO-KF (NW16) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 | |
| C41603000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41621000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41622000 | DN 25 ISO-KF (NW25) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C41623000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41626000 | - | Aluminum | |
| C41641000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41642000 | DN 40 ISO-KF (NW40) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C41643000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41646000 | - | Aluminum |
IPVPK ISO-KF - In-line Isolation Valve
The Edwards range of in-line single acting cylinder, spring return pipeline valves are designed for high speed actuation from standard pneumatic lines, and are offered in sizes NW16, 25, 40 and 50. They are available with aluminium or stainless steel bodies with either O-ring (shaft seal, aluminium only) or bellows sealed.
The valves are designed for long life duties, with a MTTF of 5,000,000 cycles for both bellows and O-ring sealed versions providing long intervals between services.
Features and Benefits
- Improved lifetime, mean-time-to-failure now 5,000,000 cycles
- Electrical and visual indication of valve status
- Fast acting – 20 ms to close (PV16)
- Available in aluminium or stainless steel
- Choice of bellows or O-ring shaft sealing with aluminium bodies
General Product Information
| Recommended Pressure Range Min | 1.000 × 10⁻⁷ |
| Recommended Pressure Range Max | 2.100 × 10⁵ |
| Connection Inlet Flange | DN 16 ISO-KF (NW16) |
| Weight | 0.310 |
| Valve Actuation Method | Pneumatic |
| Connection vacuum outlet flange | DN 16 ISO-KF (NW16) |
| Leak Rate | 1.000 × 10⁻¹³ |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Environmental Conditions
| Temperature Ambient Operation Max | 318.15 |
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 278.15 |
| Temperature Ambient Storage Max | 318.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻¹⁰ |
| Pressure Differential Max | 2.100 × 10⁵ |
Operation Conditions - Limitations
| Temperature Baking Max | 373.15 |
| Reliability MTTF (mean time to failure) | 5.000 × 10⁶ |
