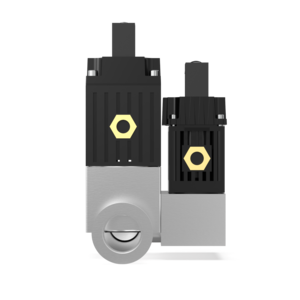

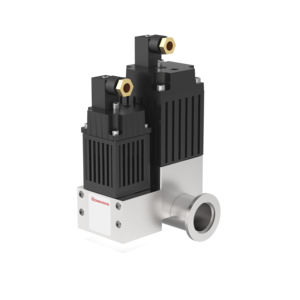

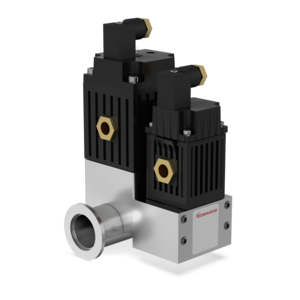

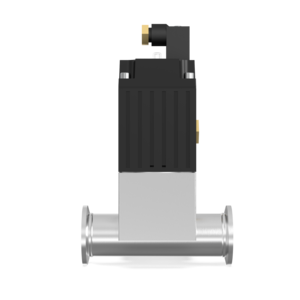

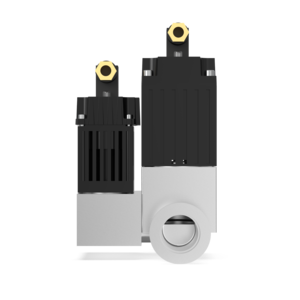

Inline Valve - SIPV25PKA - Soft Start Pneumatic Valve Al, C41624000
Part Number: C41624000
GBP 1,103.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| C41624000 | |
| C41644000 |

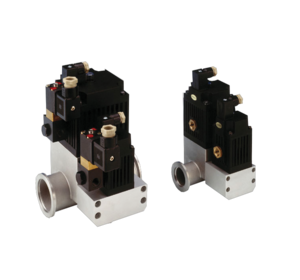

SIPVP ISO-KF - Soft Start Isolation Valve
Soft-start, pneumatically operated, in-line valves with interchangeable orifices for the controlled pump-down of processes where turbulent flow can cause problems with particulate contamination. Slave and master valve combination allows slow initial pumping to minimise disturbance. Both slave and master valves require separate pneumatic connections.
Features and Benefits
- MTTF of 5,000,000 cycles
- Controlled pump down to match process
- Aluminium bodies
- Fast acting valves in the event of power failure
- Supplied with 5 mm, 6 mm and 7 mm interchangeable orifices
General Product Information
| Recommended Pressure Range Min | 1.000 × 10⁻⁷ |
| Recommended Pressure Range Max | 2.100 × 10⁵ |
| Connection Inlet Flange | DN 40 ISO-KF (NW40) |
| Weight | 0.920 |
| Valve Actuation Method | Pneumatic |
| Connection vacuum outlet flange | DN 40 ISO-KF (NW40) |
| Leak Rate | 1.000 × 10⁻¹⁰ |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Environmental Conditions
| Temperature Ambient Operation Max | 373.15 |
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 278.15 |
| Temperature Ambient Storage Max | 373.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻¹⁰ |
| Pressure Differential Max | 2.100 × 10⁵ |
Operation Conditions - Limitations
| Temperature Baking Max | 373.15 |
| Valve Pressure Max | 2.100 × 10⁵ |
| Reliability MTTF (mean time to failure) | 5.000 × 10⁶ |
