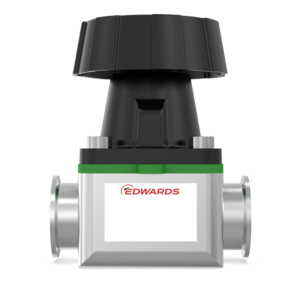

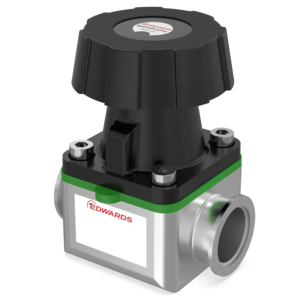

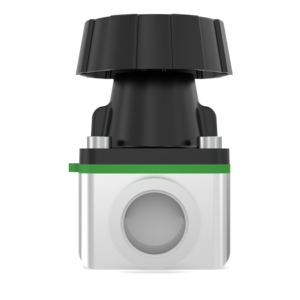

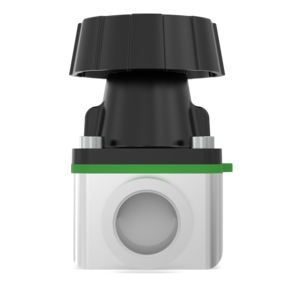

Inline Valve - SP40K - Speedivalve FKM GP Diaphragm, C33455000
Part Number: C33455000
GBP 743.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange |
|---|---|---|
| C33105000 | DN 10 ISO-KF (NW10) | |
| C33155000 | DN 10 ISO-KF (NW10) | |
| C33205000 | DN 16 ISO-KF (NW16) | |
| C33255000 | DN 16 ISO-KF (NW16) | |
| C33305000 | DN 25 ISO-KF (NW25) | |
| C33355000 | DN 25 ISO-KF (NW25) | |
| C33405000 | DN 40 ISO-KF (NW40) | |
| C33455000 | DN 40 ISO-KF (NW40) |
Speedivalve ISO-KF
Edwards SP Speedivalves are diaphragm sealed in‑line, isolation valves. The construction consists essentially of a flexible elastomeric diaphragm which is sealed onto a lightly polished seat by a screw thread mechanism. The mechanism is isolated from the system by the diaphragm resulting in an extremely rugged and ‘dirty’ system tolerant valve.
Features and Benefits
- Easy to operate with visual indication of valve open (SP10K to SP25K)
- Leak tight to better than 10‑6 mbar ls‑1 / 8 x 10‑7 Torr ls‑1
- Diaphragm completely isolates mechanism from vacuum system
- Extremely rugged and ‘dirty’ system tolerant
- Will withstand 9 bar overpressure (SP10K to SP40K, with co-seal
General Product Information
| Connection Inlet Flange | DN 40 ISO-KF (NW40) |
| Weight | 2.30 |
| Valve Actuation Method | Manual |
| Connection vacuum outlet flange | DN 40 ISO-KF (NW40) |
| Leak Rate | 1.000 × 10⁻⁷ |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Seal | FKM |
Environmental Conditions
| Temperature Ambient Operation Max | 313.15 |
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 263.15 |
| Temperature Ambient Storage Max | 313.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻⁷ |
Operation Conditions - Limitations
| Temperature Baking Max | 333.15 |
