Air Admittance Valve - AV5A - with couplings, C35003000
Part Number: C35003000
GBP 170.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange |
|---|---|---|
| C35003000 | 3/8" BSPP (or G 3/8") Male | |
| C35103000 | DN 10 ISO-KF (NW10) |

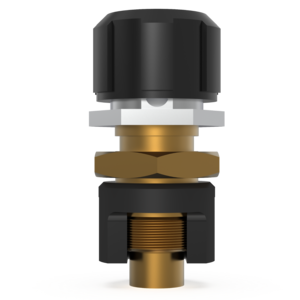

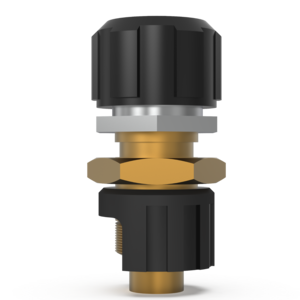

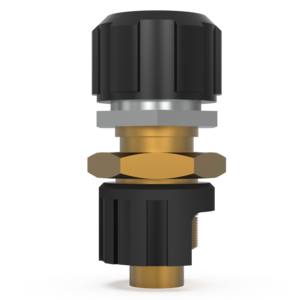

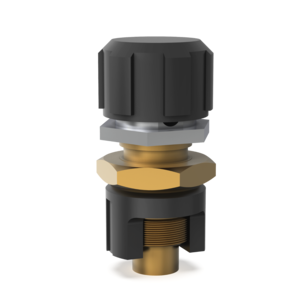

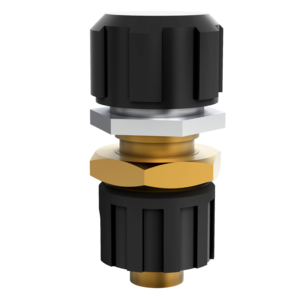

Air Admittance Valve - AV5A - with couplings
The AV5A is manufactured in aluminium alloy. It has a control knob attached to a screw‑actuated plunger: turn the control knob clockwise to close the valve. A nitrile ‘O’ ring seals the plunger to the valve body.
The valve can be connected directly, pipeline supported or panel mounted, and is connected to the vacuum system with the Edwards SC5 coupling (supplied).
General Product Information
| Connection Inlet Flange | 3/8" BSPP (or G 3/8") Male |
| Weight | 0.085 |
| Valve Actuation Method | Manual |
| Leak Rate | 1.000 × 10⁻⁸ |
| Dimension Length | 0.030 |
| Dimension Height | 0.037 |
| Dimension Width | 0.030 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material of Construction | Valve body HE30 aluminum, nickel-plated brass; plunger HE30 aluminum; Seal Nitrile |
| Material Seal | NBR (nitrile butadiene rubber) |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻⁸ |
Environmental Conditions
| Temperature Ambient Operation Max | 318.15 |
| Temperature Ambient Operation Min | 278.15 |
