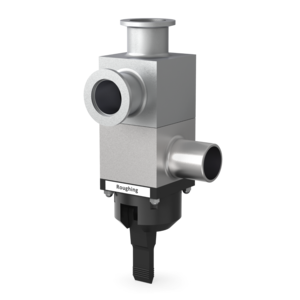

Backing/Roughing Valve - BRV25K - Manual Al NW25, C32303000
Part Number: C32303000
GBP 1,604.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange |
|---|---|---|
| C32103000 | DN 10 ISO-KF (NW10) | |
| C32303000 | DN 25 ISO-KF (NW25) |
BRV - Backing Roughing Valve

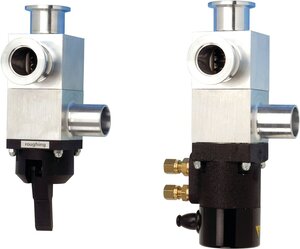

Edwards backing/roughing valves with ISO NW roughing and fore pump terminations feature manual or pneumatic actuation. They combine the function of separate backing/roughing valves in one integral 3 port unit.
A flexible neoprene connector is supplied for the backing connection. The roughing and fore pump ports terminate in the appropriate NW flange.
General Product Information
| Connection Inlet Flange | DN 25 ISO-KF (NW25) |
| Valve Actuation Method | Manual |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
