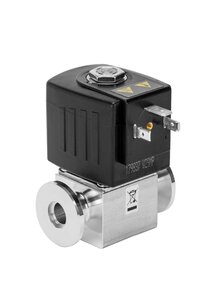

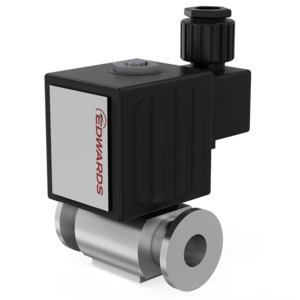

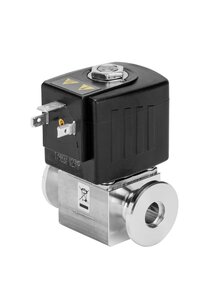

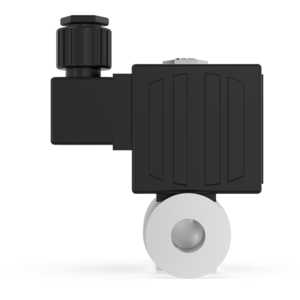

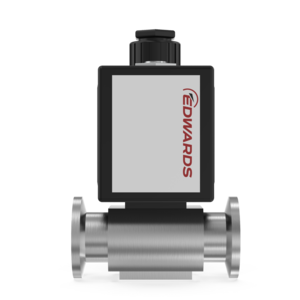

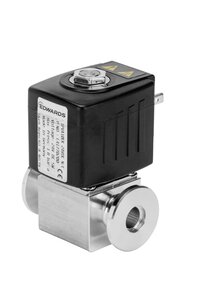

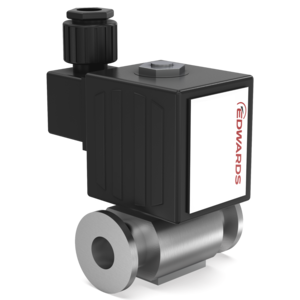

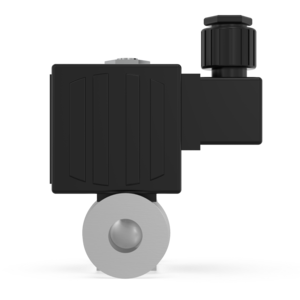

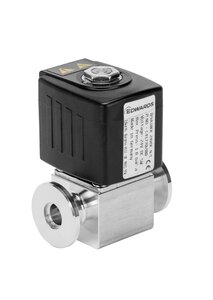

Inline Air Admittance Valve - IPVA10EK - 24V DC (normally open), C41760200
Part Number: C41760200
GBP 431.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| C41760200 | |
| C41770200 |
General Product Information
| Connection Inlet Flange | DN 10 ISO-KF (NW10) |
| Weight | 0.350 |
| Valve Actuation Method | Solenoid / Electromagnetic |
| Leak Rate | 1.000 × 10⁻⁷ |
| Power Supply Voltage | DC 24V |
| IP Rating | IP65 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
| Temperature Ambient Operation Max | 328.15 |
| Temperature Ambient Operation Min | 253.15 |
| Temperature Ambient Storage Min | 253.15 |
| Temperature Ambient Storage Max | 328.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻⁷ |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
Operation Conditions - Limitations
| Reliability MTTF (mean time to failure) | 5.000 × 10⁵ |
