Specifications
Connection electrical comms interface connector | DSUB 9-PIN - Male |
Connection Inlet Flange | DN 16 CF (1.33") |
Pressure Measurement Max | 6.60 |
Pressure Measurement Min | 6.600 × 10⁻⁸ |
AIGX-D - DN 16 CF - St St Active Ion Gauge, D04861000
Variant
Explore the range of variants given below to compare the product
Short Description | Part Number | Connection Inlet Flange |
---|---|---|
D04850000 | DN 25 ISO-KF (NW25) | |
D0485000C | DN 25 ISO-KF (NW25) | |
D04851000 | DN 16 CF (1.33") | |
D0485100C | DN 16 CF (1.33") | |
D04852000 | DN 40 CF (2.75") | |
D0485200C | DN 40 CF (2.75") | |
D04860000 | DN 25 ISO-KF (NW25) | |
D0486000C | DN 25 ISO-KF (NW25) | |
D04861000 | DN 16 CF (1.33") | |
D04862000 | DN 40 CF (2.75") | |
D0486200C | DN 40 CF (2.75") |
Gauge Indirect Pressure Measurement
Indirect braod range vacuum gauges are the best choice when the pressure needs to be measured over a wide range and when good accuracy is needed across the whole range. Reliable vacuum gauges are essential to ensure your system’s accuracy and control. Our vacuum gauging solutions include the WRG Series Cold Cathode Combination Gauge, AIM Series Cold Cathode Gauge, and APG Series Pirani Gauge.
AIGX Series Hot Cathode Gauge

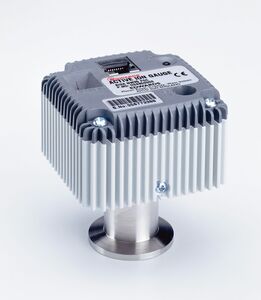

The Active Ion Gauge (AIGX) is a compact active ion gauge with dual yttria coated iridium filaments, a wide measuring range from 6.6 x 10-2 to 6.6 x 10-10 mbar and a 1 Volt/decade linear output. The AIGX incorporates all benefits of the industry standard active gauging concept, with integral electronics and replaceable tube. The gauge has a degas facility and includes features to protect and extend the life of the filaments. The AIGX benefits from extremely low emissions of charged particles, which makes it an excellent choice for processes where background noise is undesirable.
Features and Benefits
- Full 8-decade measurement capability, to 6.6 x 10-10 mbar (5 x 10-10 Torr).
- Two versions available, each with three vacuum coupling variants: ‘D’ versions have a 9-pin ‘D’ connector and standard interface.
- Up to a thirty-fold reduction in charged particle process contamination compared to leading competitors.
- Automatic filament protection against switching on at atmosphere and running or degassing at high pressure.
General Product Information
Connection Inlet Flange | DN 16 CF (1.33") |
Power Supply Voltage | DC 14.5-30V |
Dimension Length | 0.070 |
IP Rating | IP30 |
Power Supply Frequency | DC Voltage |
Dimension Height | 0.125 |
Dimension Width | 0.070 |
Connector Electrical Power | DSUB 9-PIN - Male |
Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
Temperature Ambient Operation Min | 273.15 |
Temperature Ambient Storage Min | 243.15 |
Temperature Ambient Storage Max | 343.15 |
Classification
Classification Product Pressure Range |
High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar
Ultra High Vacuum: 1·10⁻⁷ - 1·10⁻¹¹ mbar |
Classification Principle of Measurement | Hot-cathode vacuum gauge (Bayard Alpert) |
Material of Construction
Material Abbreviation | St St |
Material Filament | Platinum/Iridium |
Performance Data
Measurement Uncertainty | ±15% of full scale |
Power consumption Max String | Normal operation: 7W; Degas: 14W (max) |
Pressure Measurement Max | 6.60 |
Pressure Measurement Min | 6.600 × 10⁻⁸ |
Operation Conditions - Limitations
Temperature Baking Max (Elec. Removed) | 473.15 |
Variants
Variant Gauges | AIGX-D (DSUB 9-PIN Male, linear analog 0-10V output) |
Certificated Pressure Measurement Device | None |
Connectivity - Communication Interface
Communication Interfaces Customer | 0-10 V (analog output - S-shape) |
Connection electrical comms interface connector | DSUB 9-PIN - Male |
Setpoint Quantity | 1 |
Status Indicator | LED |
