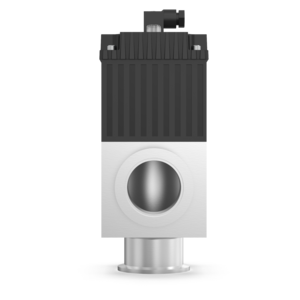

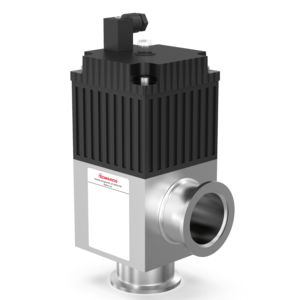

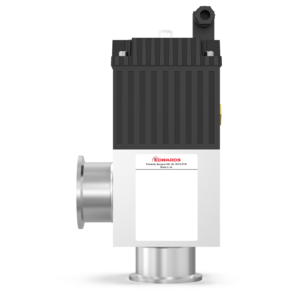

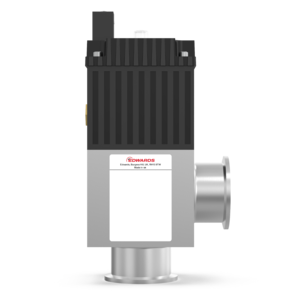

Angle Valve - PV40PKA - Bellows Sealed Al, C41411000
Part Number: C41411000
GBP 885.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange | Material Body |
|---|---|---|---|
| C41111000 | DN 10 ISO-KF (NW10) | Aluminum | |
| C41113000 | DN 10 ISO-KF (NW10) | Aluminum | |
| C41211000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41213000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41215000 | DN 16 ISO-KF (NW16) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 | |
| C41311000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41313000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41315000 | DN 25 ISO-KF (NW25) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C41317000 | - | Aluminum | |
| C41318000 | - | Aluminum | |
| C41411000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41413000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41415000 | DN 40 ISO-KF (NW40) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C41417000 | - | Aluminum | |
| C41510000 | DN 50 ISO-KF (NW50) | Aluminum | |
| C41510100 | - | Aluminum | |
| C41515000 | DN 50 ISO-KF (NW50) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 |
PVPK ISO-KF - Rt Angle Isolation Valve
The Edwards PVPK valves are fast acting, pneumatically operated right-angled isolation valves featuring bellows and O-ring sealing to provide a grease free vacuum. With visual and electrical indication of valve status and an option of aluminum or stainless steel construction, they provide a low cost valve which is ideal for high cycling duties.
Features and Benefits
- Improved lifetime, mean‑time-to-failure now 5,000,000 cycles
- Electrical and visual indication of valve status
- Available in aluminium or stainless steel
- Choice of bellows or O-ring shaft sealing with aluminium bodies
General Product Information
| Recommended Pressure Range Min | 1.000 × 10⁻⁷ |
| Recommended Pressure Range Max | 2.100 × 10⁵ |
| Connection Inlet Flange | DN 40 ISO-KF (NW40) |
| Weight | 1.50 |
| Valve Actuation Method | Pneumatic |
| Connection vacuum outlet flange | DN 40 ISO-KF (NW40) |
| Leak Rate | 1.000 × 10⁻¹⁰ |
| IP Rating | IP67 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Environmental Conditions
| Temperature Ambient Operation Min | 278.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻¹⁰ |
| Pressure Differential Max | 2.100 × 10⁵ |
Operation Conditions - Limitations
| Temperature Baking Max | 373.15 |
| Valve Pressure Max | 2.100 × 10⁵ |
| Reliability MTTF (mean time to failure) | 5.000 × 10⁶ |
